BUTT-WELD STEEL FITTINGS
Precision Fusion for Seamless Piping Solutions
Comprehensive range of butt weld fittings ensures reliable connections, structural integrity, and optimal flow in diverse industrial applications.Precision Fusion:
Crafted through the butt welding process, our steel fittings ensure a precision fusion of components, resulting in seamless joints that enhance the overall strength and integrity of the piping system.
Material Excellence:
Utilizing high-quality carbon steel or stainless steel, our butt weld fittings deliver robust performance, resistance to corrosion, and the strength required for demanding applications.
Compliance with Standards:
Our fittings adhere to stringent industry standards such as ASME B16.9 and ASTM, ensuring that they meet or exceed the performance and safety requirements demanded by your projects.
Size
1/4″ to 48″
*Larger sizes available upon request.
Schedule
10s, 40s, 80s & 160
Grade
ASTM A403WPW, A403WPX, A403WPS
304/L & 316/L
Configurations
Welded & Seamless
45°, 90° & 180° Elbows, Straight Tees, Reducing Tees & Elbows, Concentric & Eccentric Reducers,
Caps & Stub Ends, Crosses & Laterals
TYPES OF FITTINGS
STAINLESS STEEL FLANGE
Unrivaled Precision for Sealed Connections
Stainless steel flanges stand as a testament to excellence, offering a secure and durable solution for connecting pipes and ensuring seamless fluid flow.Corrosion Resistance:
Crafted from top-grade stainless steel alloys, our flanges offer exceptional corrosion resistance, making them ideal for applications in aggressive environments and industries where purity and longevity are paramount.
High Strength:
Benefit from the inherent strength of stainless steel, providing robust support and durability even in high-pressure and high-temperature conditions.
Wide Industry Applicability:
From chemical processing plants to food and beverage industries, our stainless steel flanges are designed to meet the rigorous demands of diverse applications.
Size
1/4″ to 48″
*Larger sizes available upon request.
Pressure Class
150#, 175#, 300#, 400#, 600#, 900#, 1500#, 2500#
Grade
ASTM A182
Grades 304/L & 316/L
Configurations
Slip-On, Weld-Neck, Threaded, Lap Joint, Socket-Weld, Blind, Reducing, Orifice Flange Sets (Complete), Tongue and Groove, Small and Large / Male and Female, Plate Flanges, Raised and Flat, RTJ and other facings.
TYPES OF FLANGES

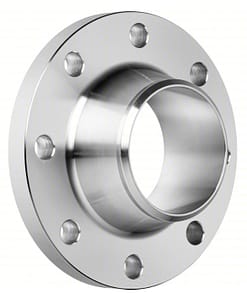

Weld Neck Flange
The Weld Neck Flange is a highly sought-after connection that is widely recognized for its neck extension and weld bevel structure, making it a perfect fit for large and high-pressure applications.

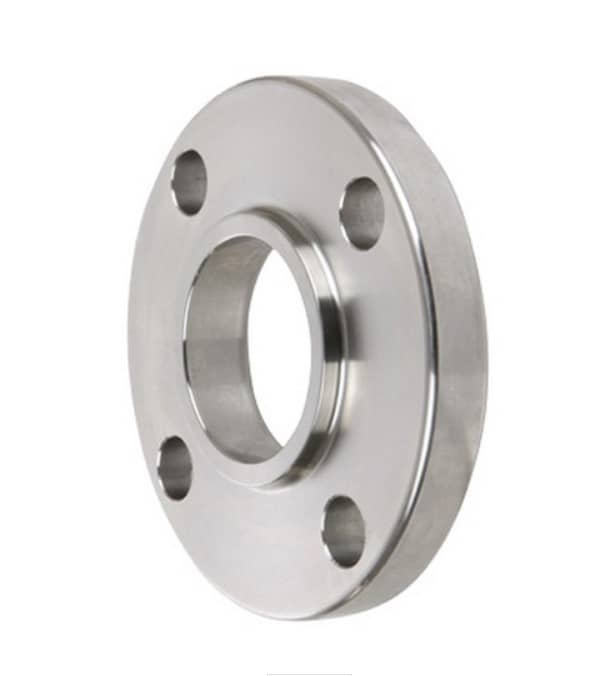

Slip-On Flange
A Slip On Flange is a practical option to consider in lieu of a Weld Neck flange. It has been specifically engineered to accommodate the pipe in its center/bore, which enables seamless welding around the outer diameter of the pipe.
Socket Weld Flange
The Socket Weld flanges are often referred to as Counter Bore flanges. They are designed with a socket to accommodate the insertion of the pipe when the Weld Neck flanges cannot be used due to space limitations.

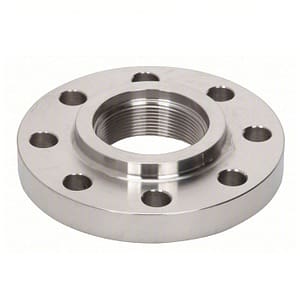

Threaded Flange
Threaded or Companion Flanges simplify maintenance and enable secure connections in piping systems. They are versatile components that can be used with different piping materials.

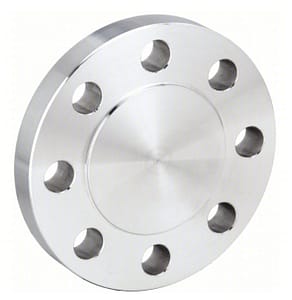

Blind Flange
Blind Flanges are primarily used to end a pipeline without an internal diameter. However, they can be customized by adding NPT threads or bore holes to function as Slip On flanges. This modification allows them to connect to pipes or equipment in a hubless fashion.
Lap Joint Flange
Lap Joint Flanges are designed to be functional by placing them over a stub end fitting. These flanges are engineered with an extended hub and have a machined radius at the base of the flat face to ensure maximum efficiency.
